Generating novel, designable, and diverse protein structures by equivariantly diffusing oriented residue clouds
Receipt of GENIE
- Represent protein as a sequence of $C_{\alpha}$ atomic coordinates.
- Use standard Gaussian diffusion and SE(3)-equivariant denoizer model.
Methodology
Genie is a DDPM that generates protein backbones as a sequence of $C_{\alpha}$ atomic coordinates.
In other words, the protein is represented by a sequence $x = [x^1, \ldots, x^N]$ of $C_{\alpha}$ coordinates, where $N$ is a number of residues.
Then standard Gaussian diffusion process is applied.

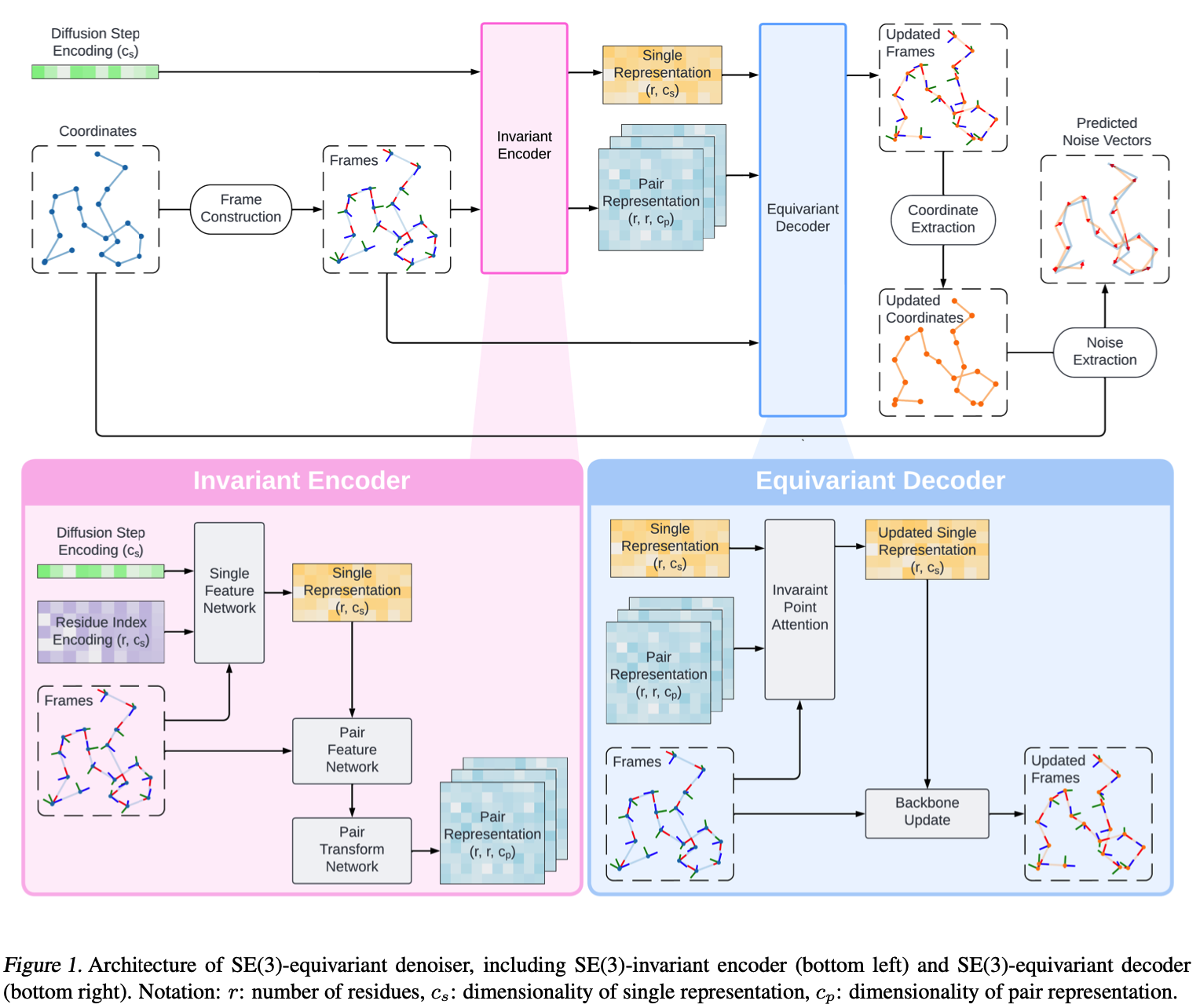

Model
FS frames
Each FS frame represents the position and orientation of a residue relative to the global reference frame. Once constructed, these FS frames enable downstream model components, including IPA, to reason about the relative orientations of protein residues and parts.
\[\mathbf{t}^i = \frac{\mathbf{x}^{i+1} - \mathbf{x}^i}{\|\mathbf{x}^{i+1} - \mathbf{x}^i\|}\] \[\mathbf{b}^i = \frac{\mathbf{t}^{i-1} \times \mathbf{t}^i}{\|\mathbf{t}^{i-1} \times \mathbf{t}^i\|}\] \[\mathbf{n}^i = \mathbf{b}^i \times \mathbf{t}^i\] \[\mathbf{R}^i = [\mathbf{t}^i, \mathbf{b}^i, \mathbf{n}^i]\] \[\mathbf{F}^i = (\mathbf{R}^i, \mathbf{x}^i)\]$F_i$ is a discrete FS frame.
